ชื่อแบรนด์:
Ford
Model Number:
10R80
วิดีโอ
วิดีโอ
Application: Compatible with 6R80/10R80 transmissions (2011+ F-150 models, torque capacity 800+ Nm).
Design:

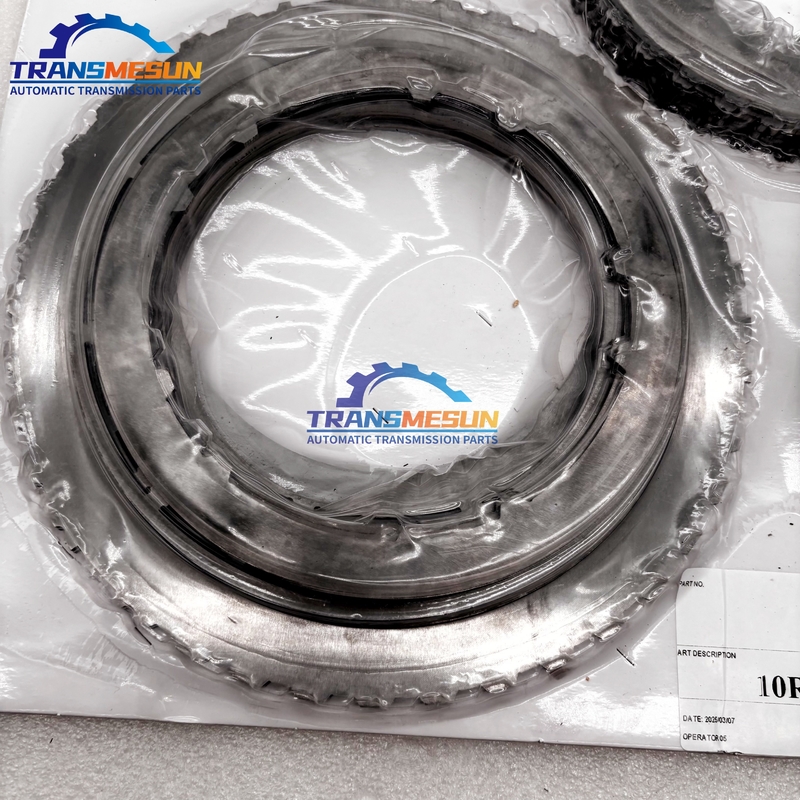

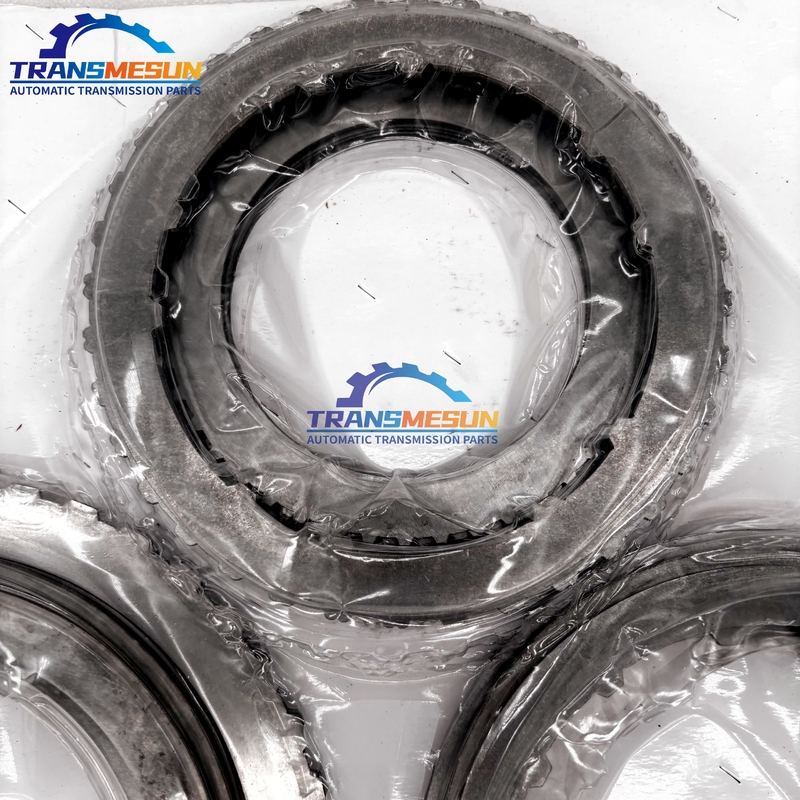

Laser-cut high-carbon steel plates (0.8–1.2mm thickness, hardness 45–50 HRC).
Boron-coated surfaces for reduced friction and heat resistance (max 250°C).
Key Specs:
Plate count: 4–6 per clutch pack (varies by gear set).
Flatness tolerance: <0.03mm (warping causes shudder).
Failure Modes:
Glazing (due to degraded Mercon ULV fluid).
Grooving (abrasive wear from clutch material).
Thermal distortion (overheating from heavy towing).
Note: Must be installed with new friction plates and updated fluid (Mercon ULV).
